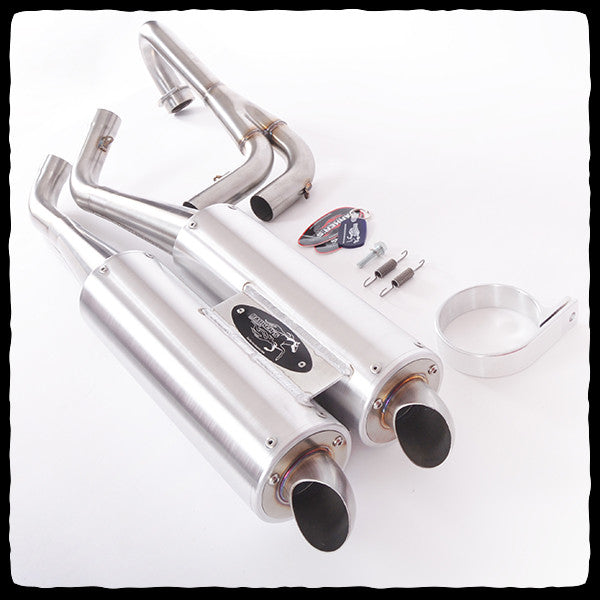

FEATURES:
- Up to 8hp increase at the wheels (up to 10hp increase with our EHS Big 3 Performance Package)
- 25%+ Power Increase!
- Must be run with a fuel controller
- Fits 2016 to current models
- Secures to your machine with Billet Round Clamp

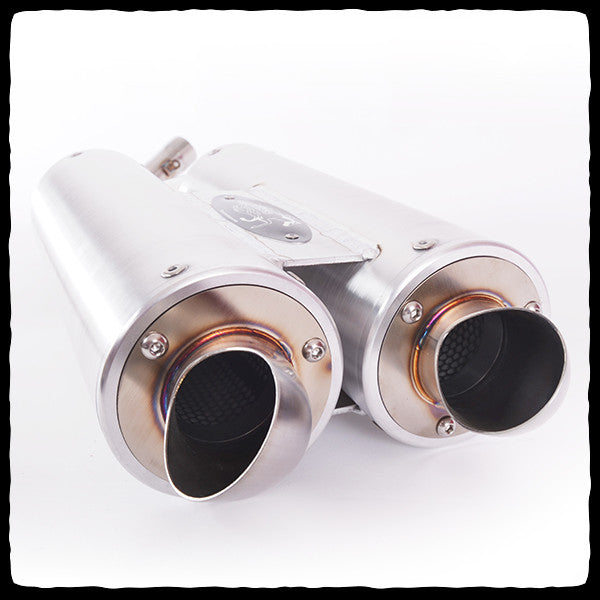

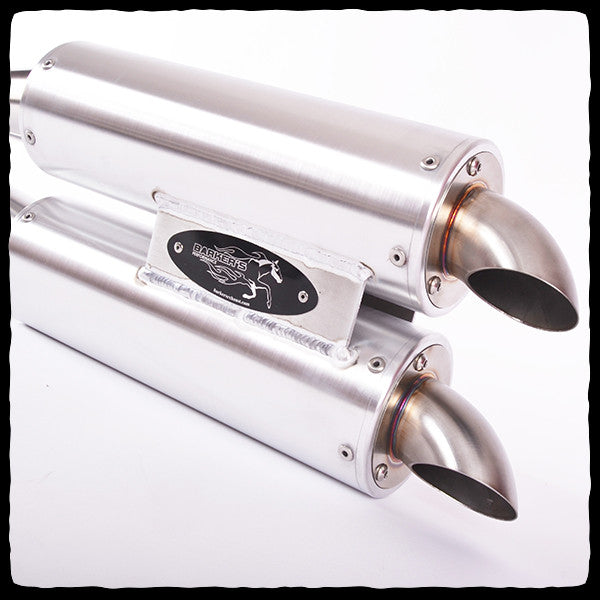

- Dual cans result in longer packing life and slightly quieter system
- Highest grade can packing available (Spec 19)
- Customize your system by choosing your exhaust tag color
- Installation Instructions
- Big 3 Package:
- Optional Add-Ons:
BARKER'S ENGINEER COMMENTS:

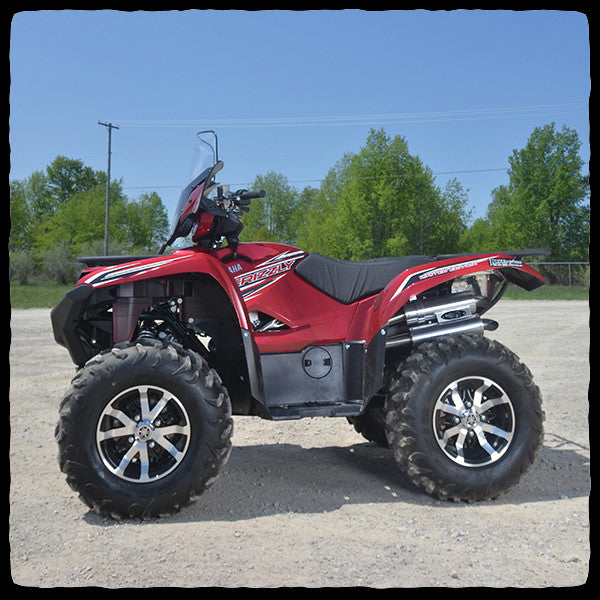

With the 2016+ Yamaha Grizzly 700 full exhaust system, testing took a bit of time for us. Initially, we found the machine was very lean from the factory, desperately needing fuel. Because of this, our initial thoughts were that a fuel controller and proper tuning would offer some very substantial gains when coupled with our exhaust system. We completed a few designs with our slip-on system and were quite pleased with the initial gains; the final outcome for that system was even better than our initial gains.

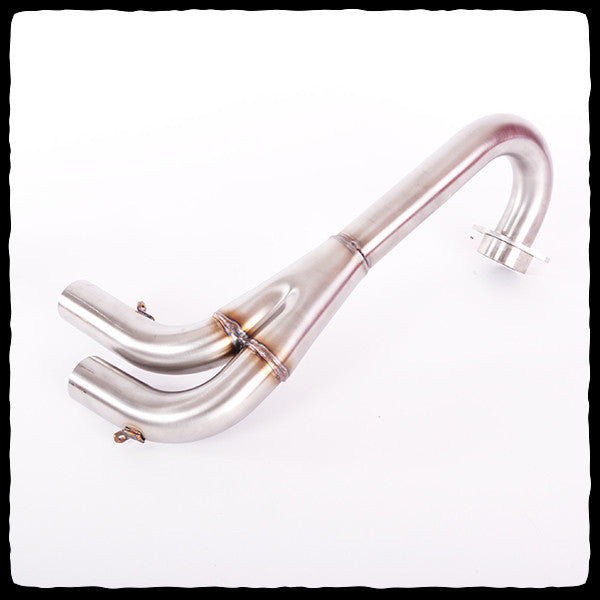

Our next goal was to do a full system, being the machine is now a single port motor it wasn’t even a thought to do duals on this new Grizzly. We threw quite a few combinations of a single head pipe at the machine and honestly were quite frustrated and disappointed. Although the Slip-On gave us great initial gains, what we found is that even with a nice full header we just couldn’t do much better than our Slip-On with a full header. Small bore header, large bore header, stepped header, it didn’t seem to matter too much we just weren’t beating the stock header coupled with our Slip-On.

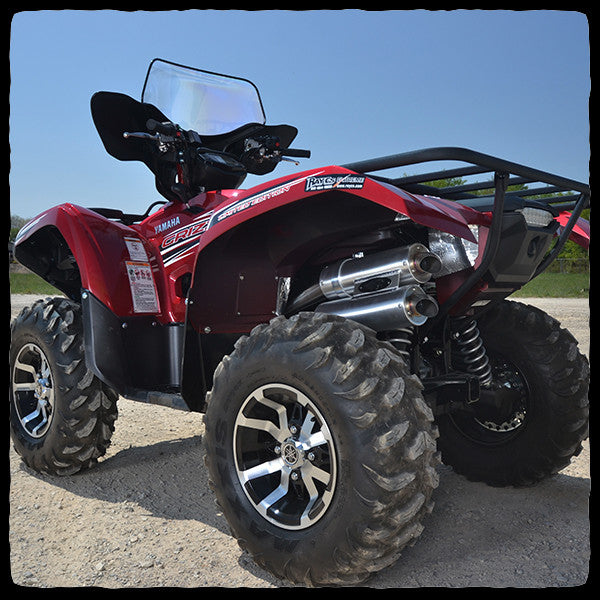

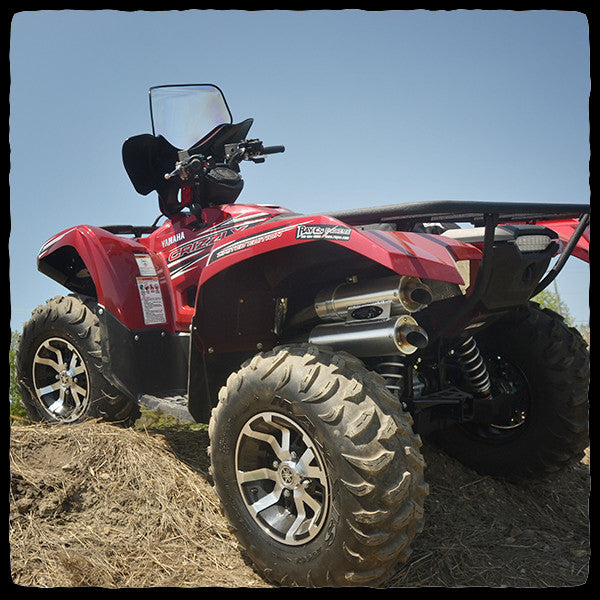

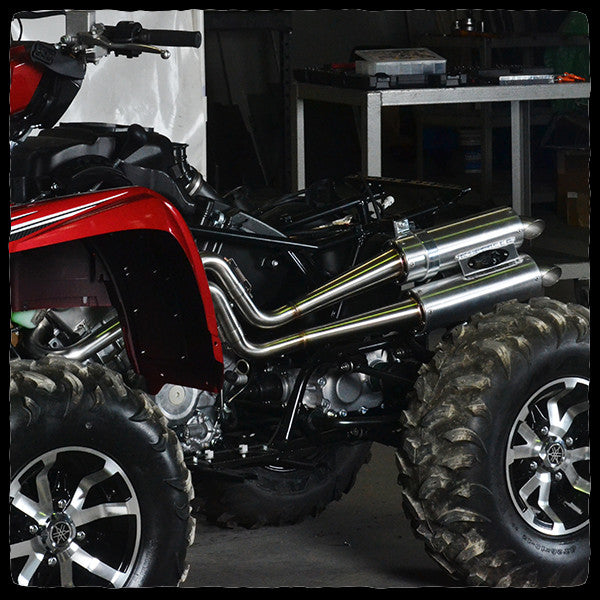

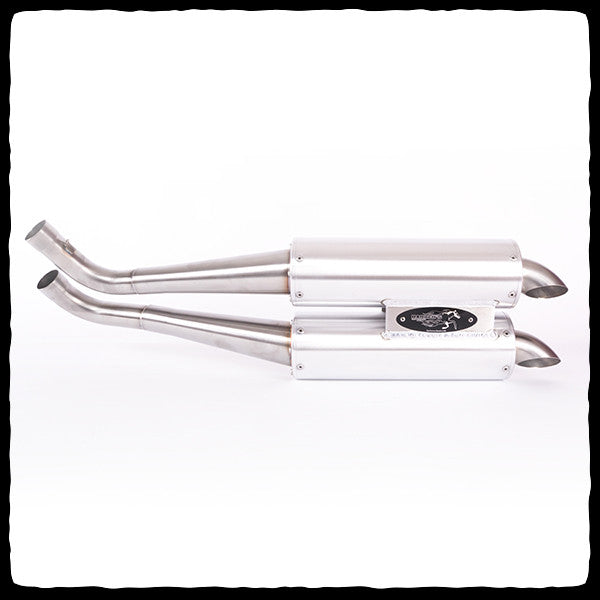

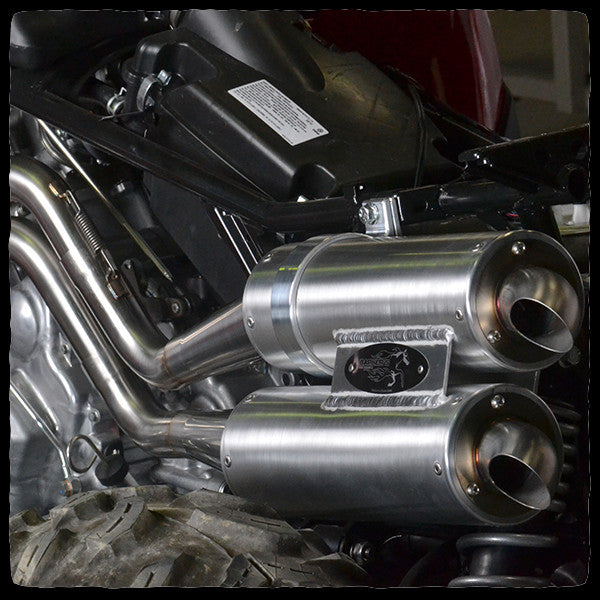

After some time standing there staring at the machine in disappointment, it finally hit us! Looking over at the rack of our previous year models of Grizzly Duals and Raptor systems we had our "ah-ha" moment. “Wait a minute, we were shocked with the results of the new Single Port Raptor loving a Dual Exhaust why don’t we throw a 1 into 2 Dual on this new Grizz and see what happens?”. After mocking up the first trial set and getting it on the Dyno, to our surprise it came right to life!

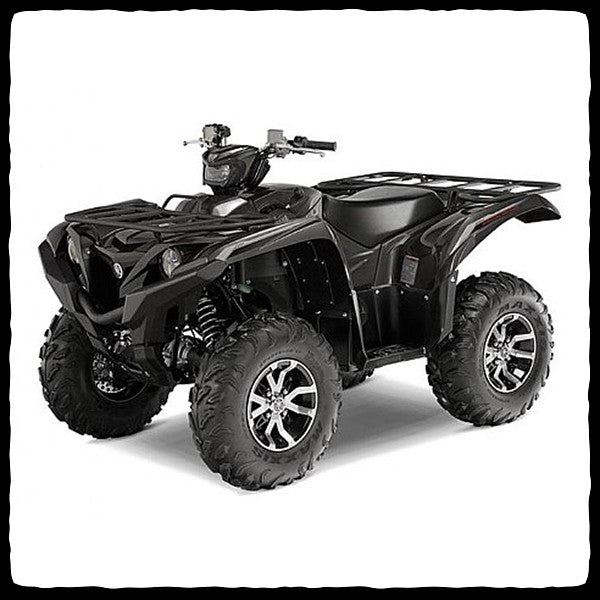

With a good 3-5 horsepower jump over the previous single systems and our own slip-on we knew we had found what the machine needed and loved. Proper tuning coupled with our 1 into 2 Duals yielded a good 38 horsepower at the wheels. With the stock machine coming in around 29-30hp we were extremely excited looking at nearly a 25% increase in power. On a different machine with some slight Airbox modifications, Eric at EHS was able to reach just over 40hp! Looking at an 8-10hp gain we feel you’ll be extremely pleased with the seat of the pants dyno on this one! Get it all with our EHS Big 3 Performance Package with Grizzly 700 Dual Exhaust for 2016+ Models.
We can’t thank Eric Sutton over at EHS Racing enough for all the testing and help that was done on this development. It has truly been a joint venture to develop this system. Eric probably has more experience on the Grizzly’s than anyone we know. Stay tuned, we feel there will be more to follow on the Grizzly front in the coming months and years!
Thanks to all our fans both near and far who are posting & sharing pictures and videos of their new Barker's Grizzly Dual Exhausts!
At Barker's, we have an extreme amount of dedication and respect for the off-road lifestyle. And we understand that owning and maintaining a performance vehicle is no joke. That is why you can expect only the best in Barker's craftsmanship and design. All Barker’s exhaust systems carry a limited one-year warranty against defects in workmanship and/or materials. See Barker's Terms & Conditions.
MAINTENANCE:
We recommend that you monitor and check the packing in your muffler after every ride. The length and time your packing will last will vary depending on how and where you ride. When you first notice any sign of the packing depleting within the can, it's time for a repack. Packing will wear out slowly over time, starting at 100% packed. It is normal for an absorption style high-performance muffler to lose packing but once you lose more than about 10-15% of your packing it will deplete faster and faster since it can now move around in the can. It is imperative you do not allow the packing to deplete too far. If your muffler becomes very loud or you hear rattling around inside the can you have completely depleted the internal packing and should not ride the machine until the muffler is repacked with a fresh pillow. Order new packing before you need it!
The Barker's Exhaust Complete Repack Kit is designed to make repacking your Barker's Exhaust Can simple. *NOTE: If you have a dual system you will need to purchase 2 repack kits.
